Comfort Off-the-grid

It is likely that it is what we don't see coming that poses the greatest danger. In the case of renewable energy systems people have to confront the need to see beyond their back yard. It is one thing for a giant wind turbine to be built at the exhibition grounds or demonstration site. It is quite another for them to be visible from your back yard. Just imagine the shadows, dangers, and destruction to birds. These are very real concerns that we rightly have. However, it turns out that these visible concerns are smaller than the ones we can't see. In reality the coal plants a hundred kilometers away pose a far graver danger to our health, not to mention the birds, fish and other plants and animals.

What We Don't Have

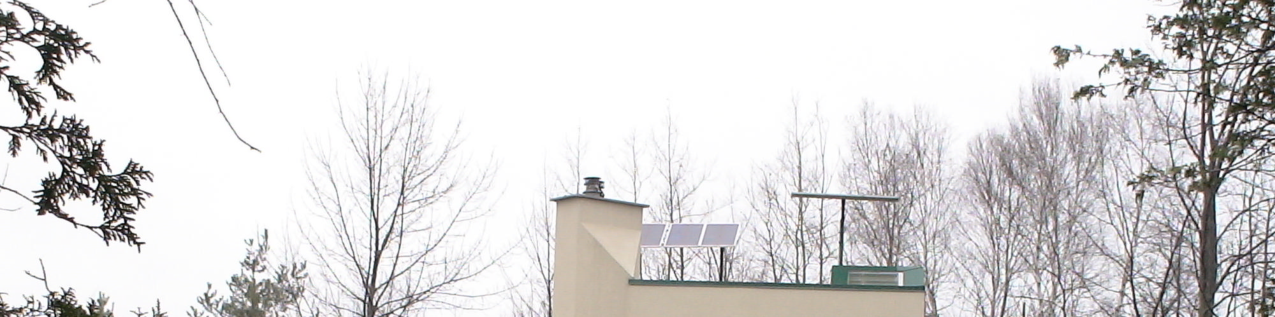

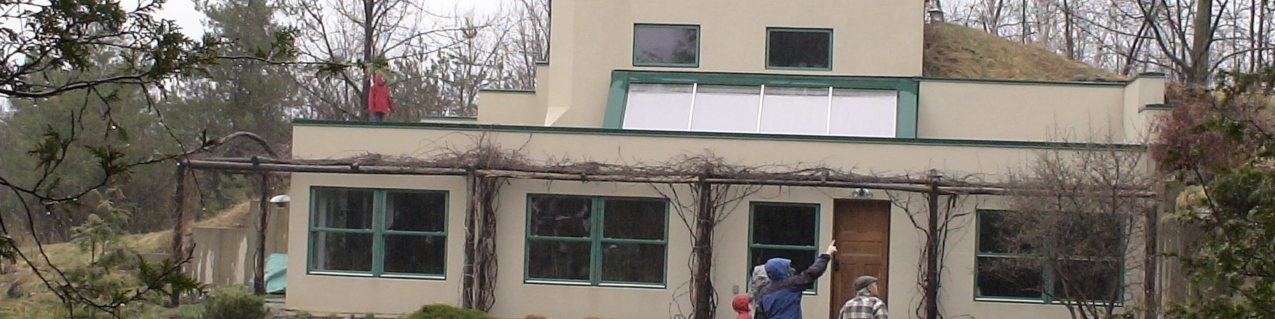

The Ketchums live on a high hill on the edge of Hockley Valley. Their home is completely off-the-grid. The solar panels are clearly visible on the roof. It is what you don't see that is even more insightful. In the case of the Ketchum home in the Hockley hills you will find they DON'T have:

·Air conditioning (not needed because of earth sheltering)

Heating, Cooling and Ventilation

First of all the building was built partially underground to the top of the second floor on the north and east sides. This earth sheltering of the building on these especially vulnerable areas (north winds in the winter significantly increase heating requirements in a conventional home that is not protected by the earth or trees) has meant that it has never dropped below 10°C which is the year-round temperature of the earth below the frost line. Using this knowledge it is possible to ensure a consistent comfortable temperature in both the summer and the winter. The earth sheltering also keeps the building cool in the summer.

Because the building is sealed in winter, there is a ventilation system that circulates fresh air. A heat recovery ventilation unit transfers the heat from the exhaust air to the intake air.

The thermal mass of the building helps to produce a comfortable temperature. Cement, brick walls, tile floor, steel ceiling decks supporting cement all help keep the temperature constant for long periods. Thermal mass beneath the windows on the south side stores heat during the day in the summer and releases this heat in the evening and at night. In the summer a trellis on the south and west sides provides shade while growing grapes and kiwi vines. There are 174 sq. ft. of triple glazed, R8 heat-mirror windows which allow the short warming rays of the sun to heat interior surfaces, but prevent the long rays which surfaces give off from escaping.

The masonry oven provides heating and cooking with high efficiency. This 7 ton wood-fired masonry heater keeps the house at a comfortable temperature with one fire for 2-3 hours each afternoon and evening. Wood is brought by toboggan from the wood shed into the house. Drying cupboards in the main bedroom on the second floor utilize the heat from the two flues at the same time as they keep the upper bedroom warm.

Hot Water Heating

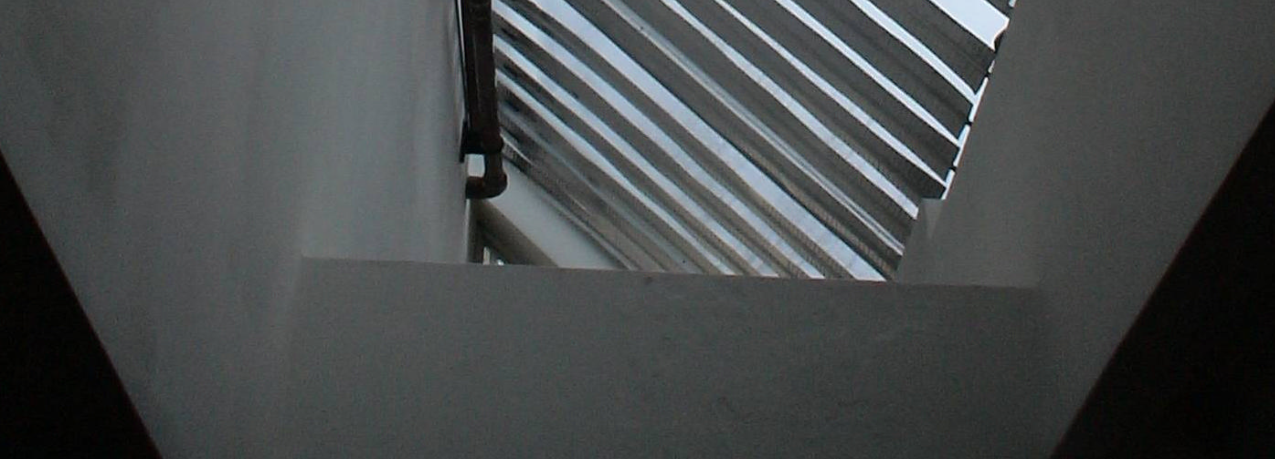

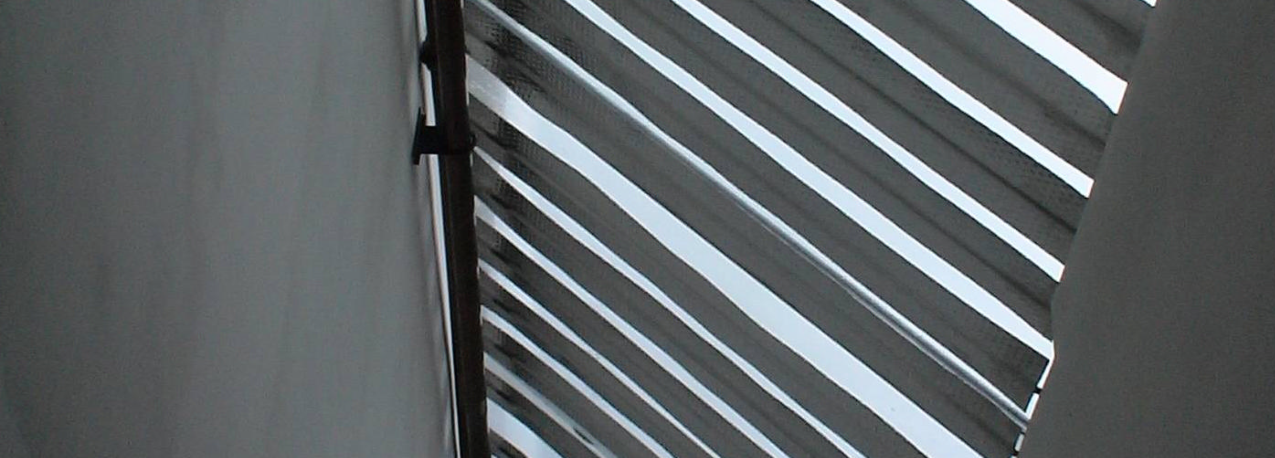

Hot water is heated by south-facing fins inside the skylights which send the heated water to a 90 gallon hot water storage tank via thermo-siphon (with no electrical pumps). This solar hot water heater is especially efficient since it resides inside the home rather than outside in the cold as with most solar hot water heating systems. There is also a loop in the hot water piping which goes through the fire box of the masonry heater to provide additional heat in the winter. By combining solar with the masonry wood heating system there is no need for a furnace.

Cooking and Refrigeration

A wood-fired kitchen cook stove is able to boil water in as little as 7 minutes. It has a small oven and provides immediate warmth in the kitchen area. The bake oven in the masonry heater will hold a large turkey. It keeps a steady 400°F when the masonry heater is on. There is a back-up propane gas fueled stove. Less than one 100 lb tank is used in six months. A 12 cu. ft. Sunfrost freezer and refrigerator runs on 12vdc and uses 55 watts per hour of electricity, nearly half that of a conventional light bulb. Cold room cupboards in the kitchen are open at the back to the cool mechanical room and provide storage for jams and butter.

Water

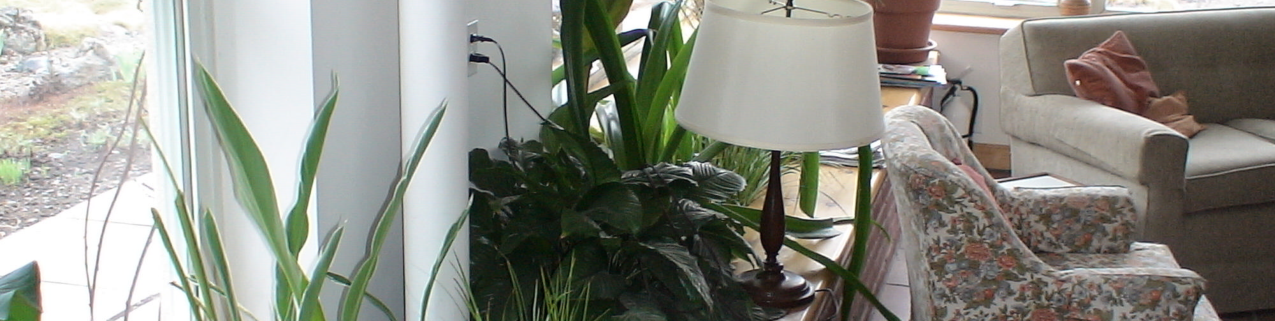

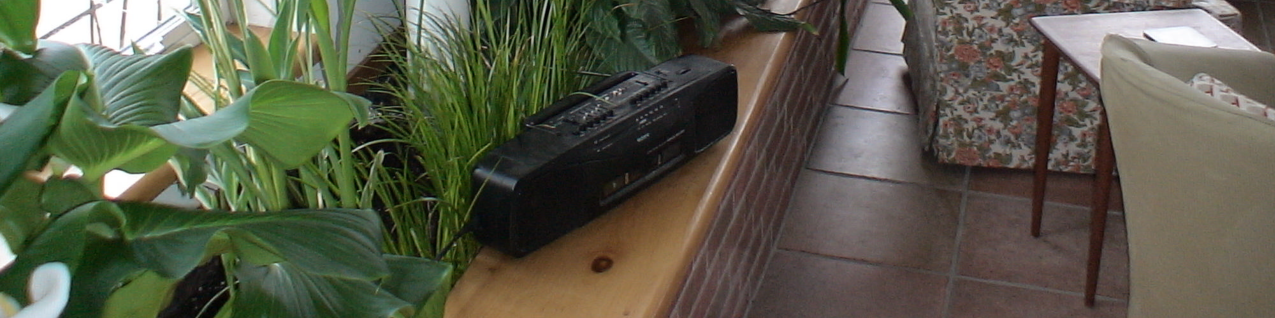

The two flat roofs feed rain water into a 9,000 liter cistern for washing. A dug well supplies drinking water (to a dedicated tap in the kitchen) using a submersible pump. All grey water is purified by the roots of the indoor garden plants before draining out to the wetland (see picture below). Because of the composting toilets there is no black water, but excess 'compost tea' is pumped to the wetland.

The wetland is planted with reeds and rushes to take up toxins. A rubber roofing membrane was spread in the space excavated for the wetland; the weeping tile grid was placed on top of it then covered by a peat, topsoil and gravel mix.

A small organic vegetable garden has been started on the south-west side of the property. Wherever possible, native species have been used in planting to provide low maintenance and resistance to drought. Instead of lawn grass, the Ketchums have used sheep's fescue which stays short requiring little if any trimming.

Solar Electric Systems

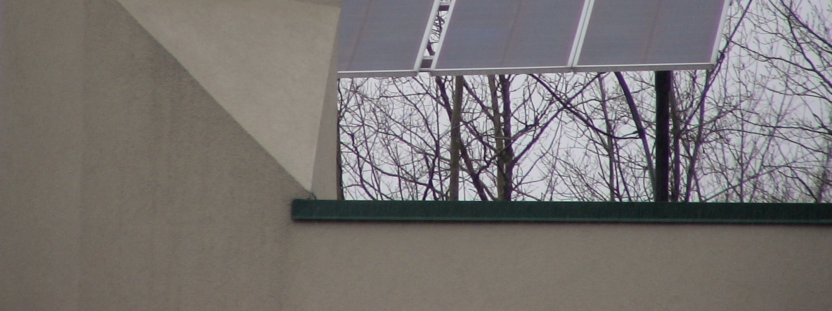

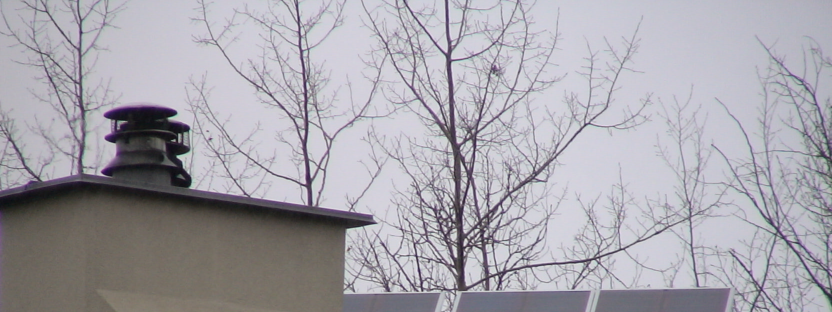

Solar electric photo voltaic panels ( 7 x 64 watt) charge 8 deep cycle golf cart batteries. A 400 watt wind generator is placed above the tree line behind the house. The gasoline powered electric generator used to construct the house in 1996-1998 has been wired into the system so that it can be used as a back-up if the batteries are low and there is no wind or sun. (In the winter of 2000-2001 it

providing continuous ventilation. Durisol blocks used in construction are made from cement and recycled wood chips from old pallets/skids. The wood shed is built largely with pallets from the construction. The mineral wool insulation used is made from waste slag from mines. Old hydro poles and a used rubber roofing membrane (for the wetland) has been very useful outside. The inside railing, newel posts and pickets were removed from a house that was torn down. The front door was rescued from being sent to the dump and re-finished. The dining table is composed of a 19thcentury B.C. fir beams taken from the demolished Corbey Distillery and made by Anthony Ketchum's cousin.

used approximately 55 liters of gas; i.e. one automobile fill-up).

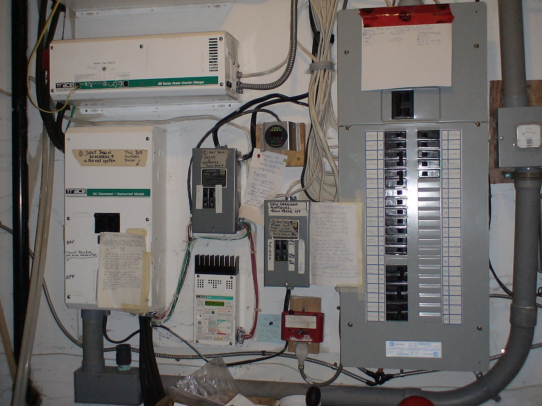

The system is and has always been totally 'off-grid'. The refrigerator, cistern water pump and some fans run on 12 vdc for greater efficiency. Two 1,500 watt inverters change the 12 vdc current coming from the photo voltaic solar panels and wind generators to 120 volts AC. The submersible well pump runs on 240 volts AC and all lights, kitchen appliances, power tools and main ventilation fans run on regular 120 volts AC. The Ketchums do not use an electric toaster or hair dryer as they consume a great deal of power. If they wanted, they could have a small microwave oven, but in winter have constant heat in the bake oven and from the cook stove.

Construction

Dry-stacked Durisol blocks and mineral wool provide R40 insulation. The house is sealed in winter, with two 25 watt fans

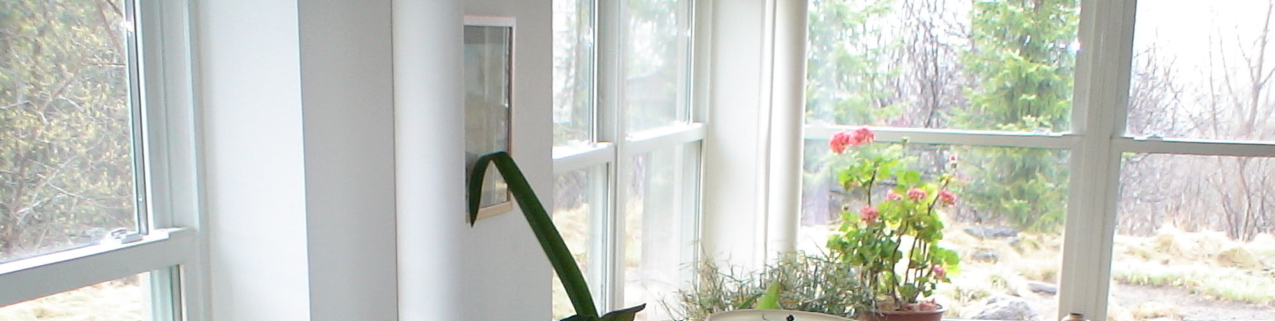

There are no curtains or blinds. The windows are not draughty in winter. Natural light is made use of wherever possible. In 1998, the house was given the Honor Award from the Sustainable Energy Association of the north-east USA and Canada.

-
